Type 1 -Type 2 Spring Charging Cable 16 Amp Green


The one essential cable that every Nissan Leaf, Mitsubishi Outlander Phev, Nissan NV200 SE Van,Toyota Prius or Vauxhall Ampera needs to enable safe and secure charging from public charge points.

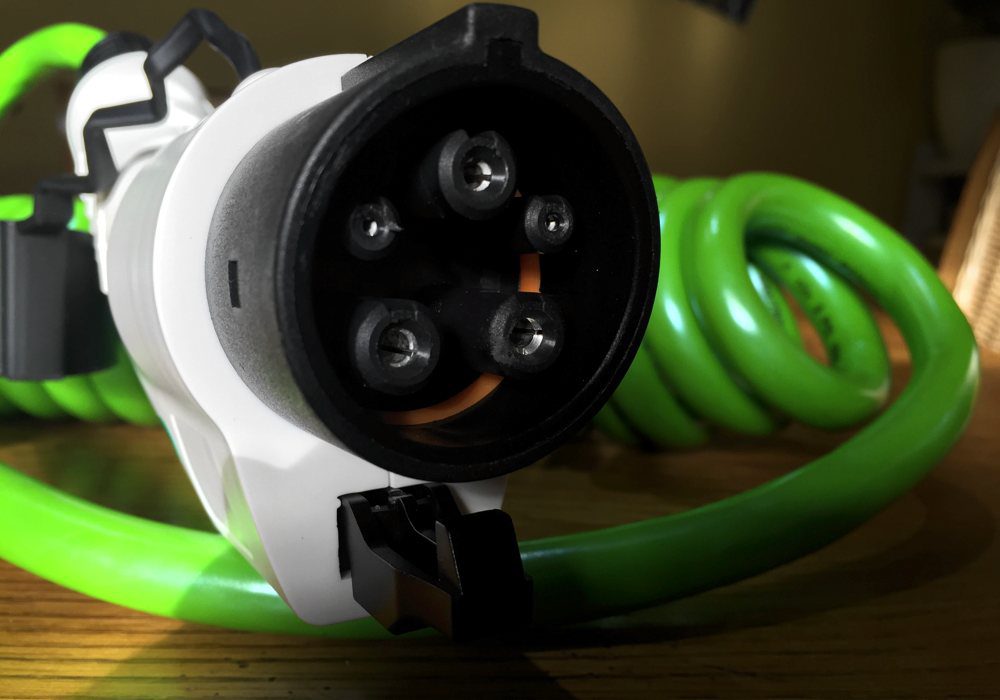

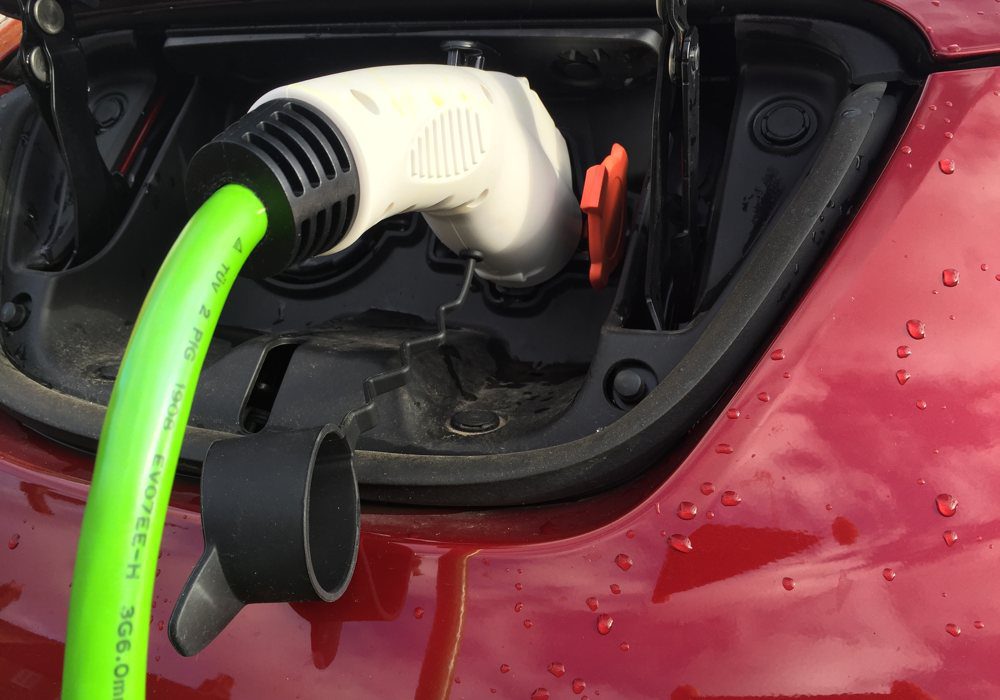

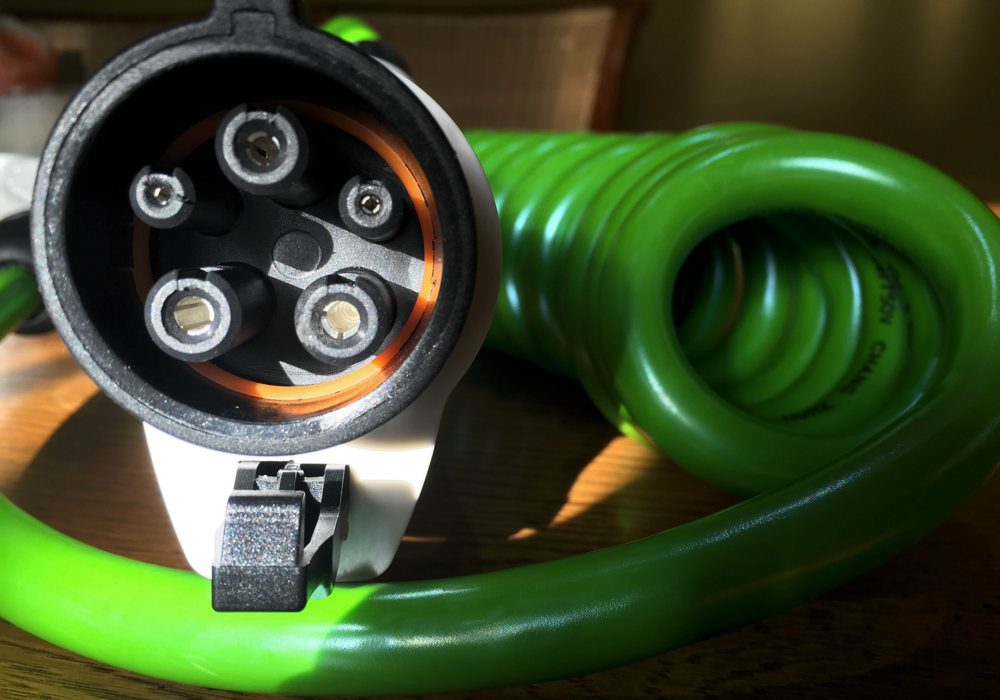

The Leaf, Outlander and most other Electric Cars use a standard Type 1 in car connector. The vast majority of public charge points offer a Type 2 connection. These include the charge points used at Waitrose, Sainsbury, ChargePoint.

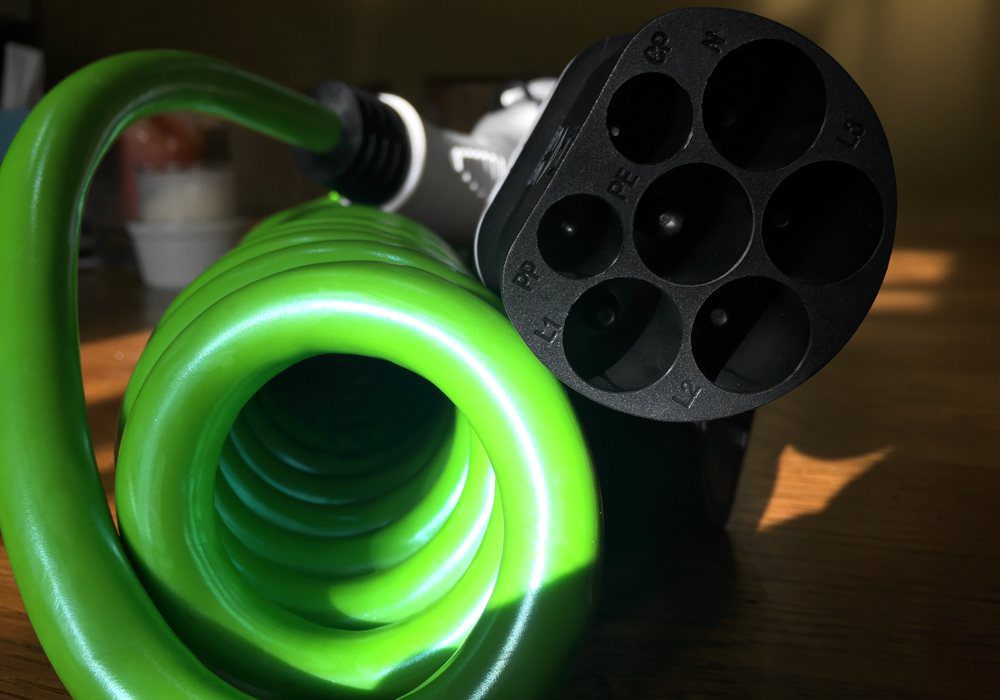

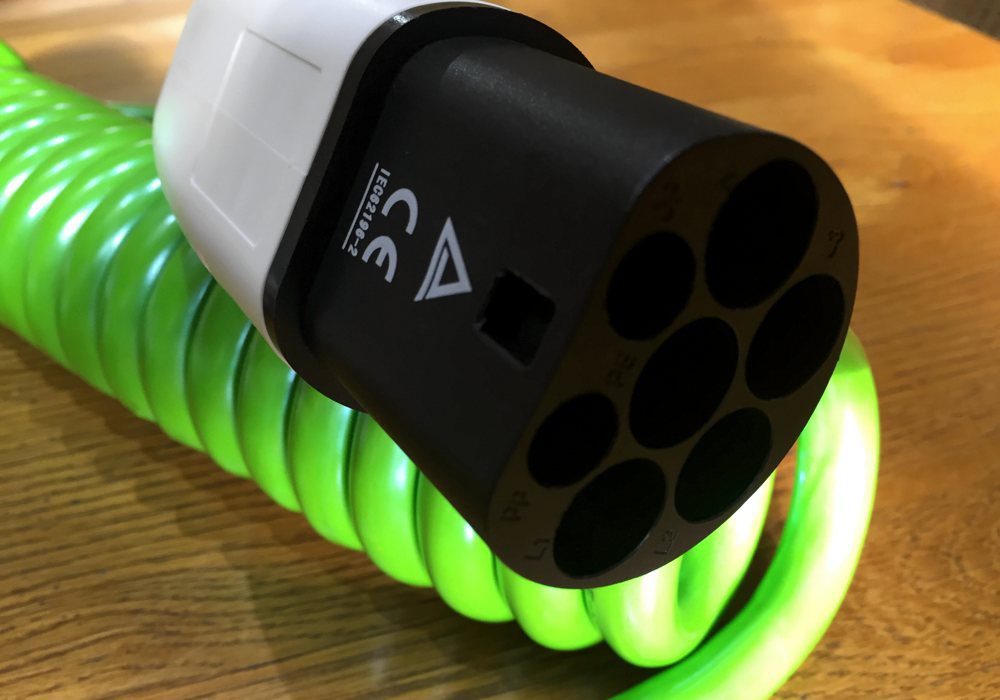

Type 2 Fast Charger

This Type 1 – Type 2 Cable permits 16Amps of charge to flow into the vehicle.

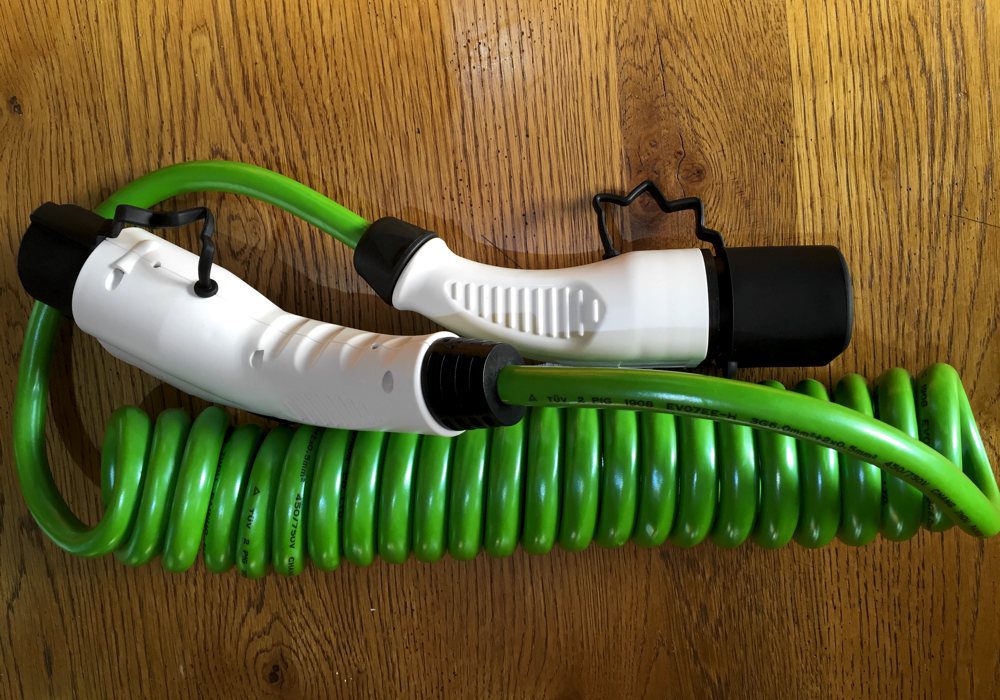

The coiled, spring like cable is 5m long and available in Green.

SKU: EV-C4C-007-SG Categories: , ,


Type 1  to Type 2 16A EV Coiled Charging Cable

Model: EV-C4C-007-SB

Rated current: 16A

Working voltage: 240V AC

Insulation resistance: > 1000M Ω

Terminal temperature rise: <50K

Withstand voltage: 2000V

Contact impedance: 0.5m Ω Max

Vibration resistance: Meet JDQ 53.3 requirements

Working temperature: -30°C ~+ 50°C

CE, TUV approved

Charging Cable Spec

TUV or UL 3*2.5mm2+2*0.5mm2

Cord length: 5m



Shell Material: Thermo Plastic ( Insulator inflammability UL94 VO)

Contact Pin: Copper alloy, silver or nickel plating

Sealing gasket: rubber or silicon rubber.

Stock Status

In Stock
