Sale!


Type 2 – Type 1 Spring Charging Cable 32 Amp Green

£125.96

Type 1 to Type 2 Electric Car Charging cable

The one essential cable that every Nissan Leaf, Mitsubishi Outlander Phev, Nissan NV200 SE Van,Toyota Prius or Vauxhall Ampera needs to enable safe and secure charging from public charge points.

The Leaf, Outlander and most other Electric Cars use a standard Type 1 in car connector. The vast majority of public charge points offer a Type 2 connection. These include the charge points used at Waitrose, Sainsbury, ChargePoint.

Type 2 Fast Charger

This Type 1 – Type 2 Cable permits 32Amps of charge to flow into the vehicle.

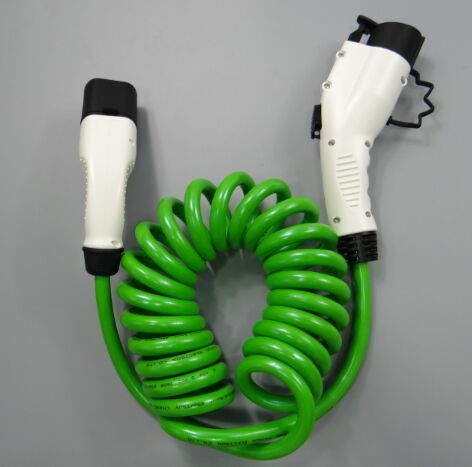

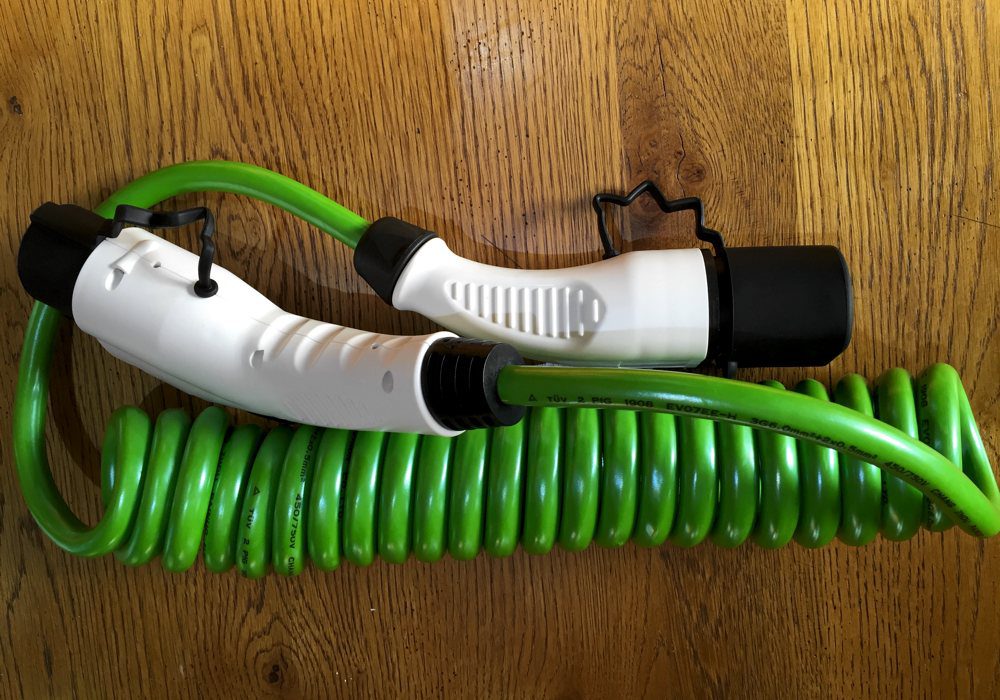

The coiled, spring like cable is 5m long and available in Green.









Type 1 to Type 2 – More details:

Or as some EV people call these – SAE J1772 (Type 1) to Mennekes / IEC 62196 (Type 2) Cable.

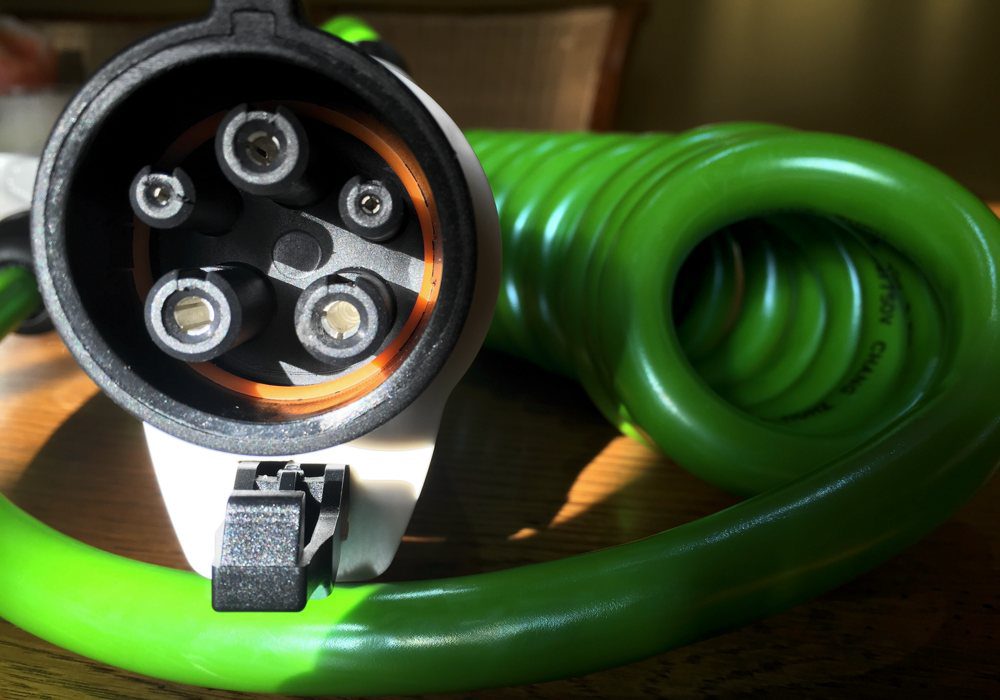

Type 2 or Mennekes is the form factor used on most public change points through the UK and Europe.

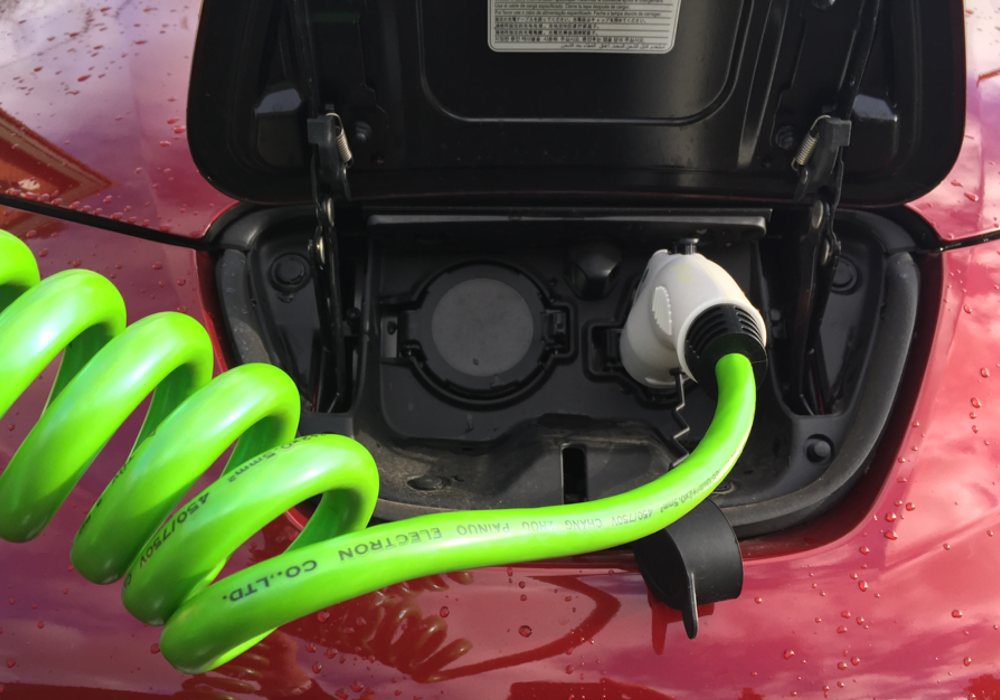

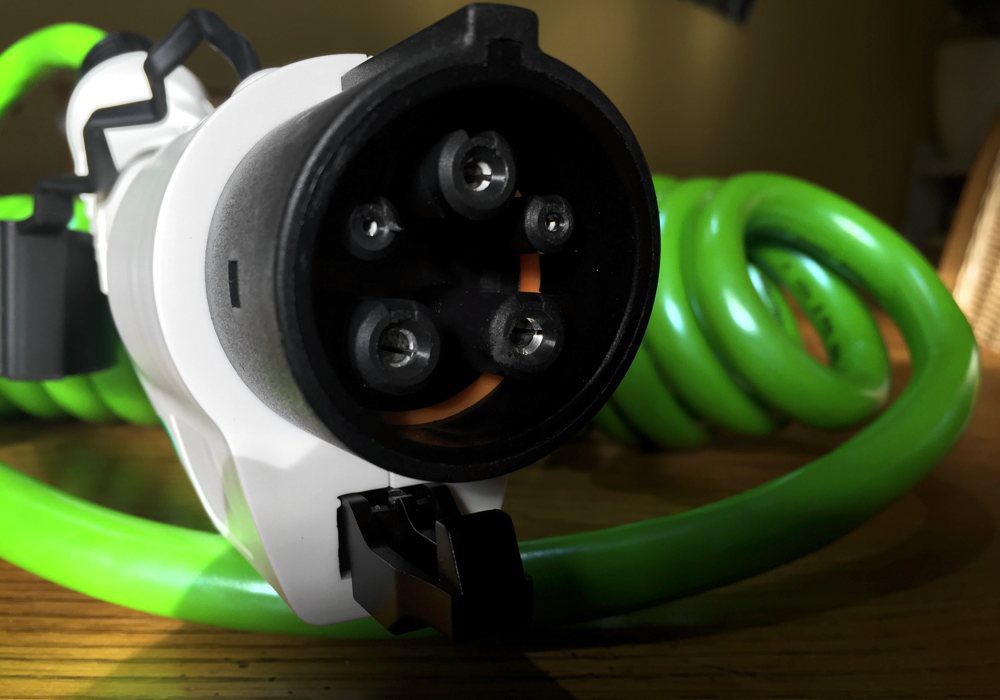

Type 1 is the cable connecting fitted to most European, Japanese and American Electric Cars including the best selling Nissan Leaf and Van, Mitsubishi Outlander PHEV, Renault, Zoe, Fluence and Kangoo, Toyota Prius Plug-in, Vauxhall Ampera.



Tesla and the German EV manufactures including the BMW i3, i8, VW e-Golf, Audi A3 e-Tron, Porsche Panamera PHEV use a different system and need a Type 2 Female to Type 2 male cable.



Our cables are 5 M in length and available in Green. They are rated for 32 Amps of current. This is above the standard 16Amp charge facility on most electric cars including the Nissan Leaf.



Our Map Page provides a good and easy to use page listing local charge points.  See EV Charge Points.



Save

SKU: EV-CHC008-SG Category:


Description

Type 1  to Type 2 32A EV Coiled Charging Cable

Model: EV-CHC008

Rated current: 32A

Working voltage: 240V AC

Insulation resistance: > 1000M Ω

Terminal temperature rise: <50K

Withstand voltage: 2000V

Contact impedance: 0.5m Ω Max

Vibration resistance: Meet JDQ 53.3 requirements

Working temperature: -30°C ~+ 50°C

CE, TUV approved

Charging Cable Spec

TUV or UL 3*6.0mm2+2*0.5mm2

Cord length: 5m

Green

Materials

Shell Material: Thermo Plastic ( Insulator inflammability UL94 VO)

Contact Pin: Copper alloy, silver or nickel plating

Sealing gasket: rubber or silicon rubber.

Stock Status

In Stock
