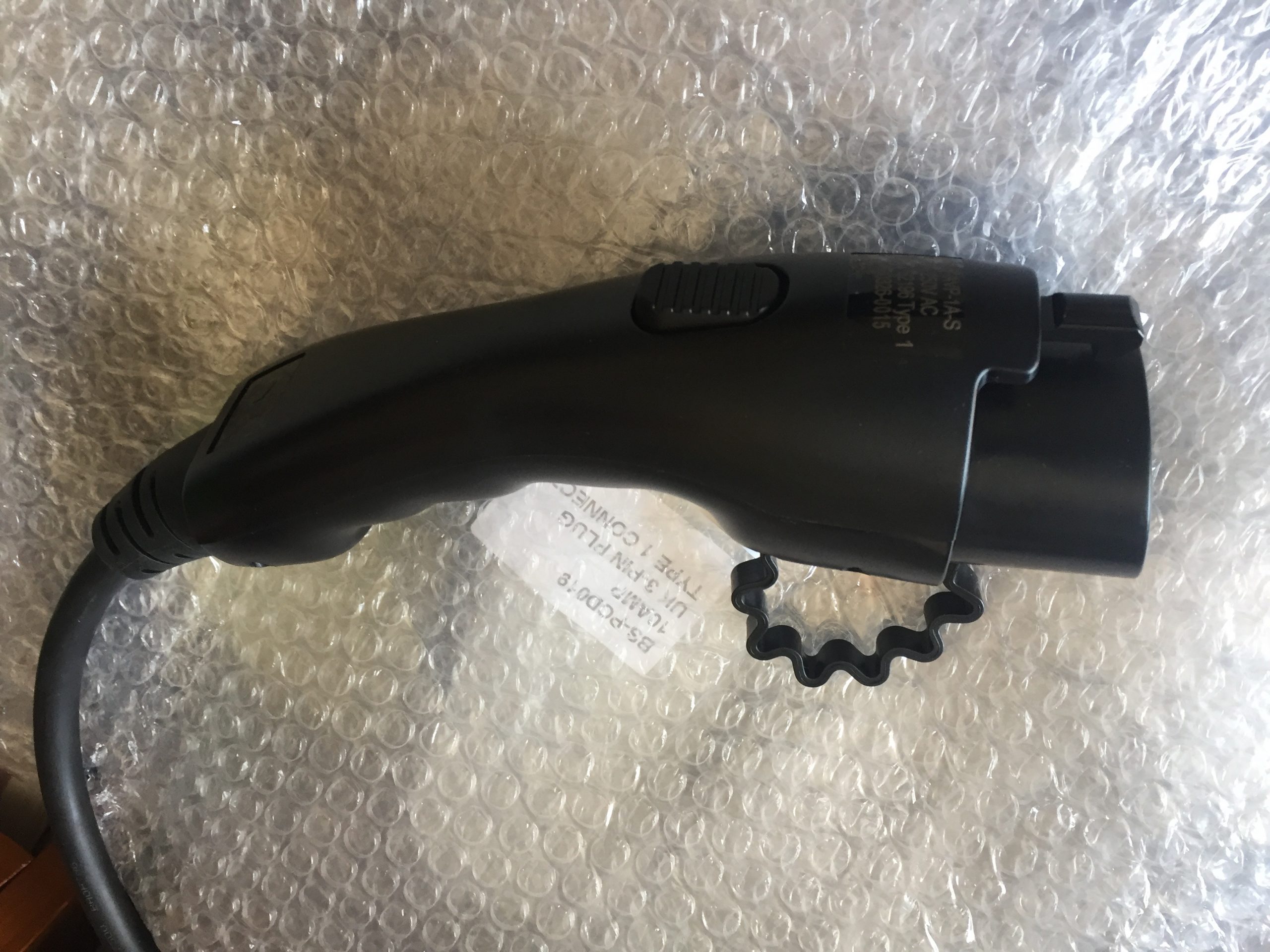

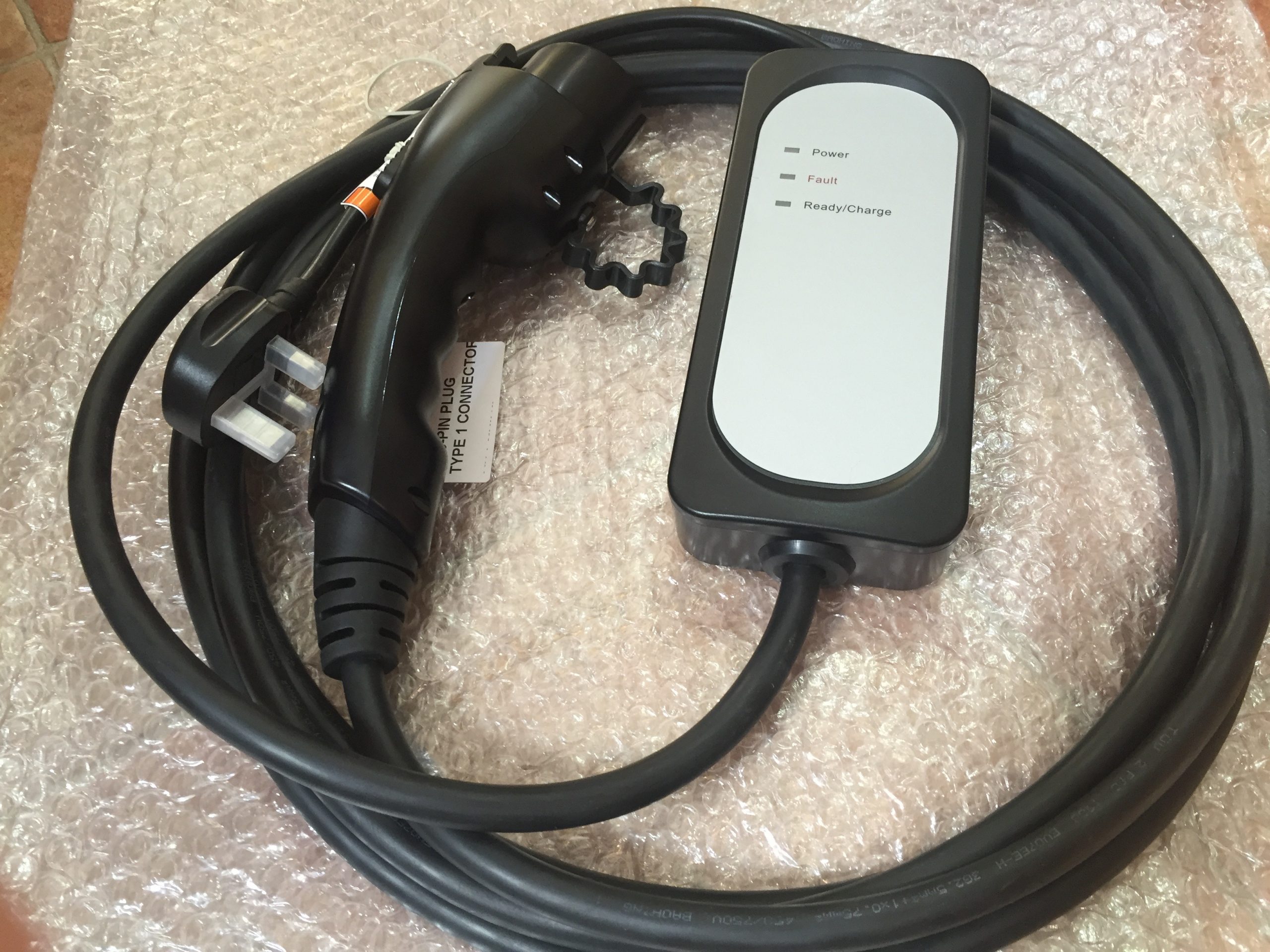

Home (13 Amp Socket) to Type 2 EV Charging Cable
Automatic resumption of the charging process
For normal EV Charging Box, it is switched off after an error or power failure and must be reactivated manually. Therefore, when overnight charging is planned, the battery could still be empty the following morning.
But this is not the case with the EV-PCD019. The EV-PCD019 permanently tests the infrastructure-related voltage. If there is still any current at the wall socket, the EV-PCD019 initiates a test sequence, establishes communication with the vehicle and ensures a safe recharging of the vehicle battery.
Comprehensive protection system
We designed all kinds of protective measures for EV-PCD019: Over-current protection, Over-voltage protection, Lightning protection, Electric leakage protection, and Short circuit protection. This is a deceive which can ensure the safety using for everyone.
Detecting faulty wiring
The intelligent EV-PCD019 also detects faulty wiring of the infrastructure-side socket and, in addition, controls the incoming protective conductor before charging begins.

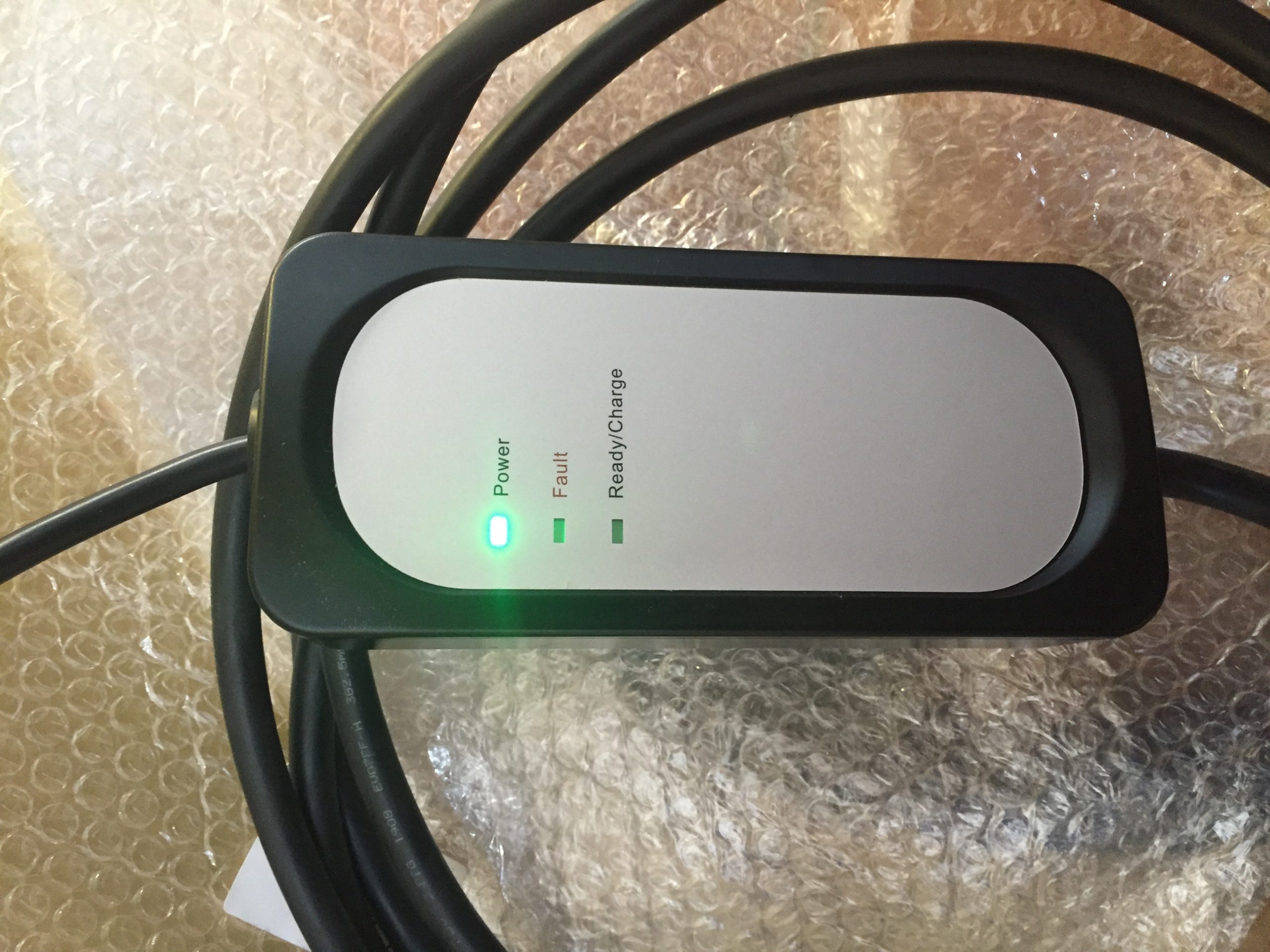

Slender, practical and robust
Thanks to the new enclosure format, the charging cable with integrated EV-PCD019 can be easily and compactly rolled up, since both bushes are fed out of the enclosure at an angle. Thus the charging cable requires less storage space.
The stable enclosure can be driven over by a car just like the charging connector and passes the test with a wheel load of 500kg. In practice the enclosure is exposed to more intensive environmental influences than plugs and connectors.
These cables are designed to survive in a robust environment and can happily lie on the ground, covered in dirt, or even to be left in a puddle and operate flawlessly.
Rated current: 10A
Working voltage: 240V AC
Insulation resistance: > 1000M Ω
Terminal temperature rise: <50K
Withstand voltage: 2000V
Contact impedance: 0.5m Ω Max
Vibration resistance: Meet JDQ 53.3 requirements
Working temperature: -30°C ~+ 50°C
CE, TUV approved
Charging Cable Spec
TUV or UL 3*2.5mm2+2*0.5mm2
Cord length: 5m
Shell Material: Thermo Plastic ( Insulator inflammability UL94 VO)
Contact Pin: Copper alloy, silver or nickel plating
Sealing gasket: rubber or silicon rubber.
