Description

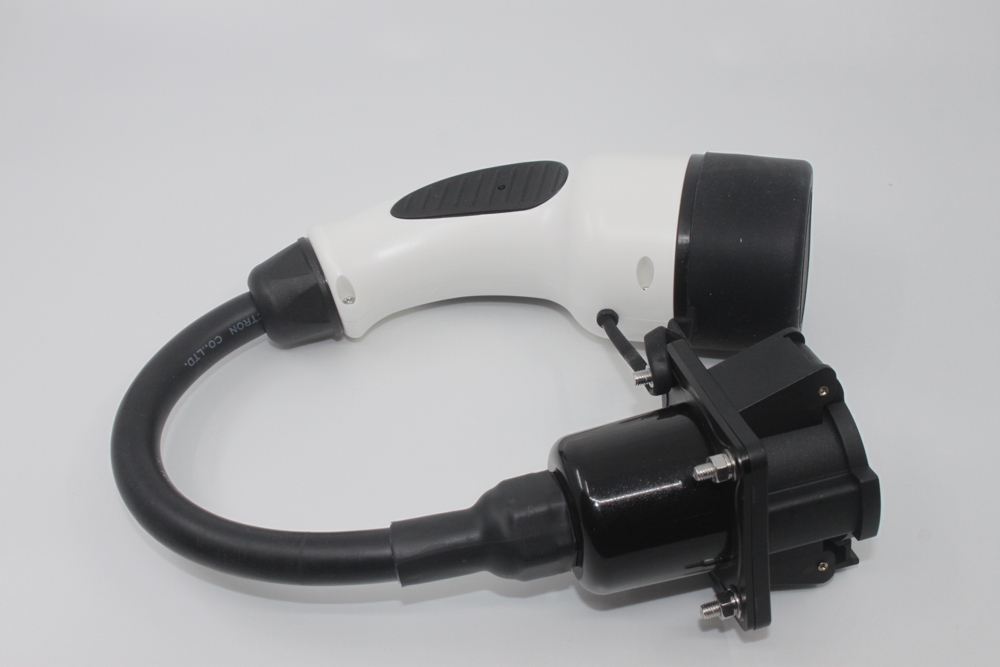

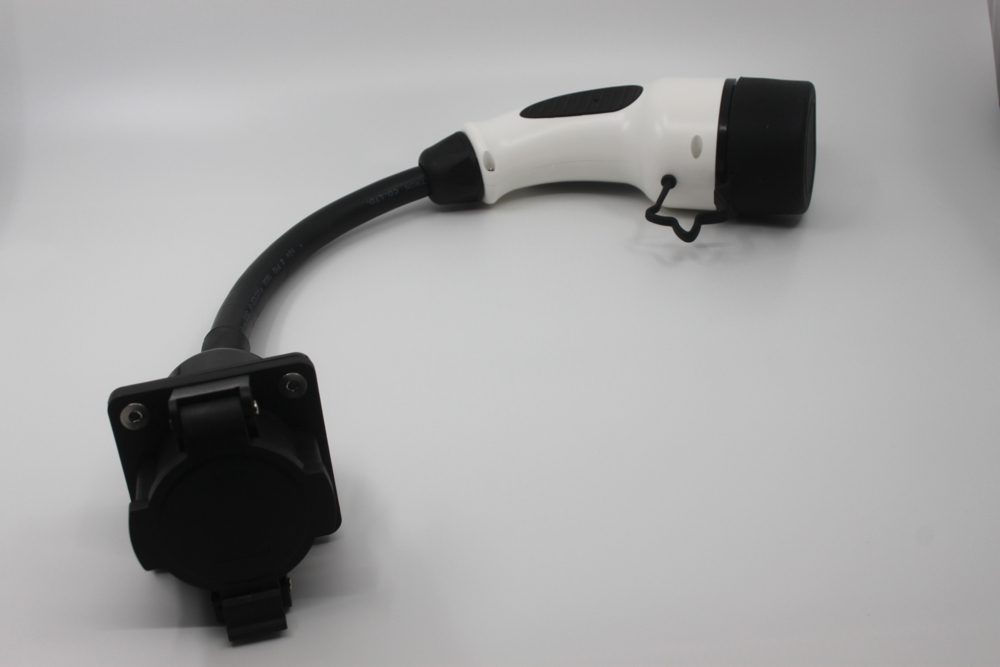

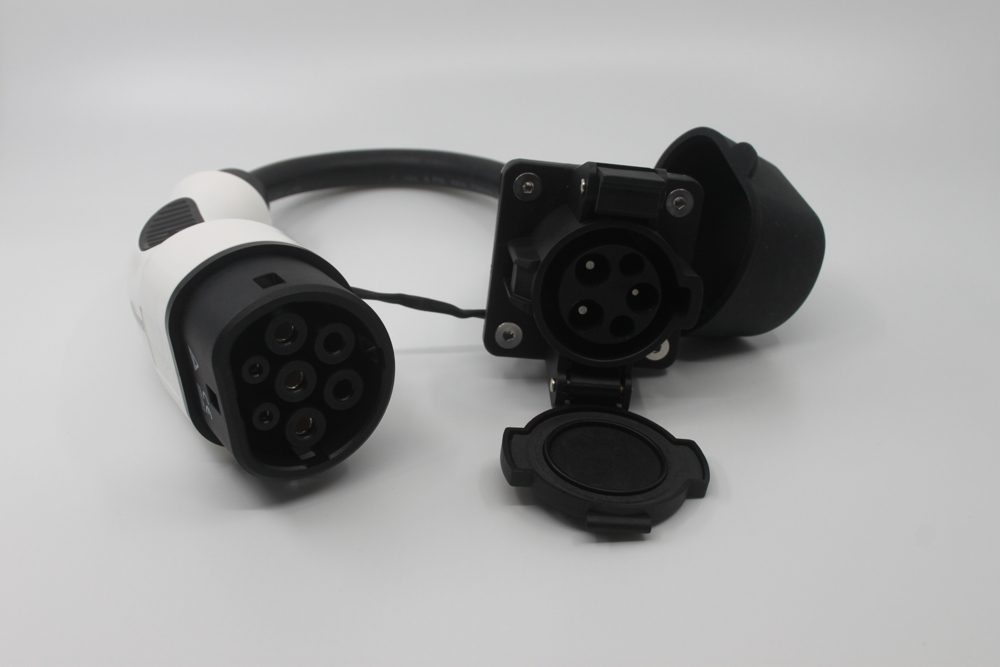

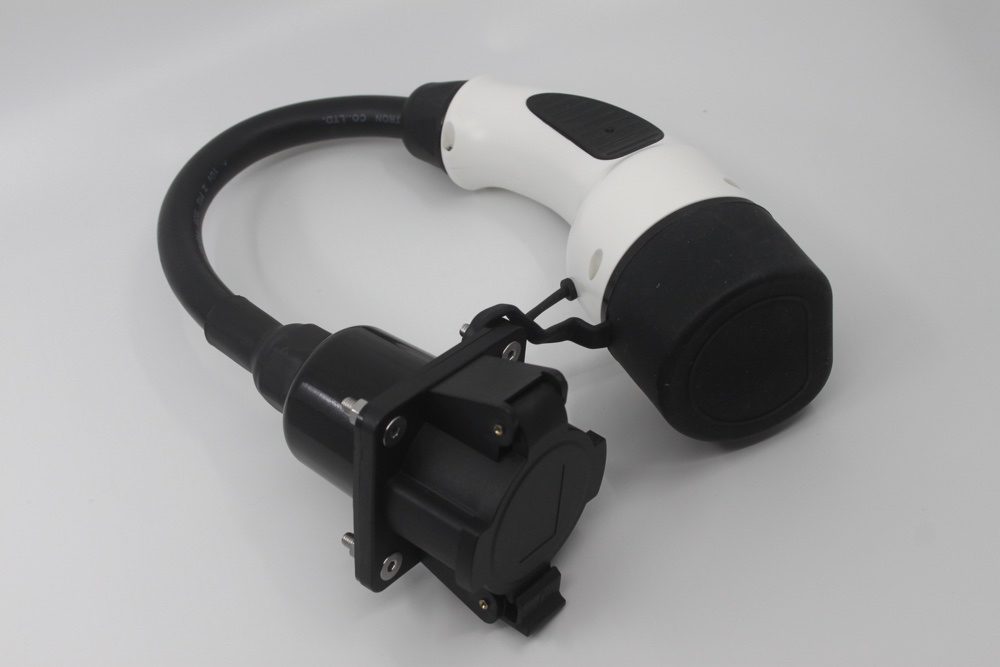

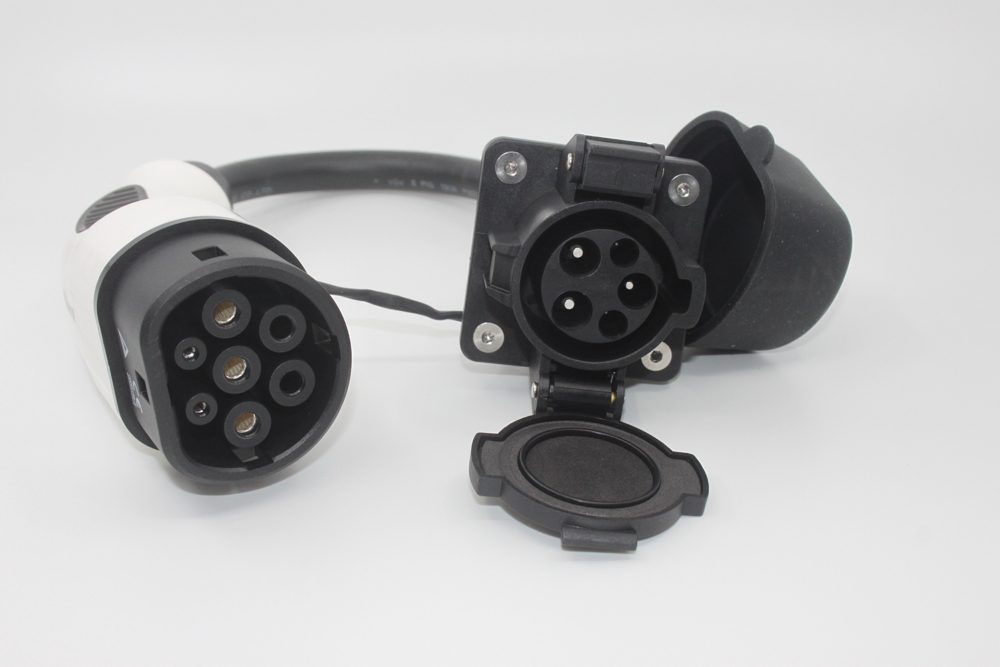

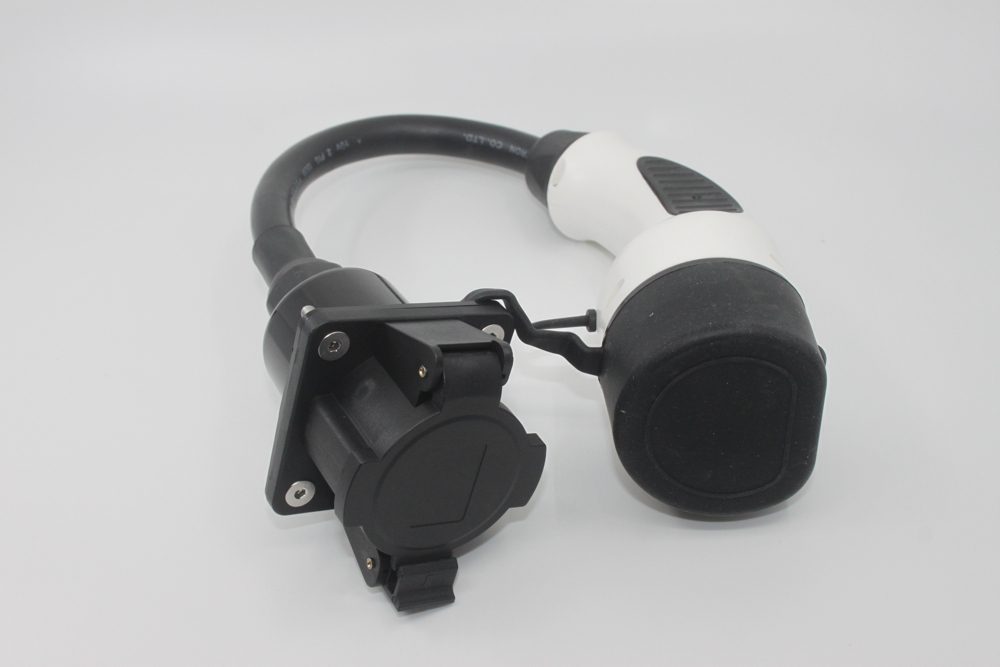

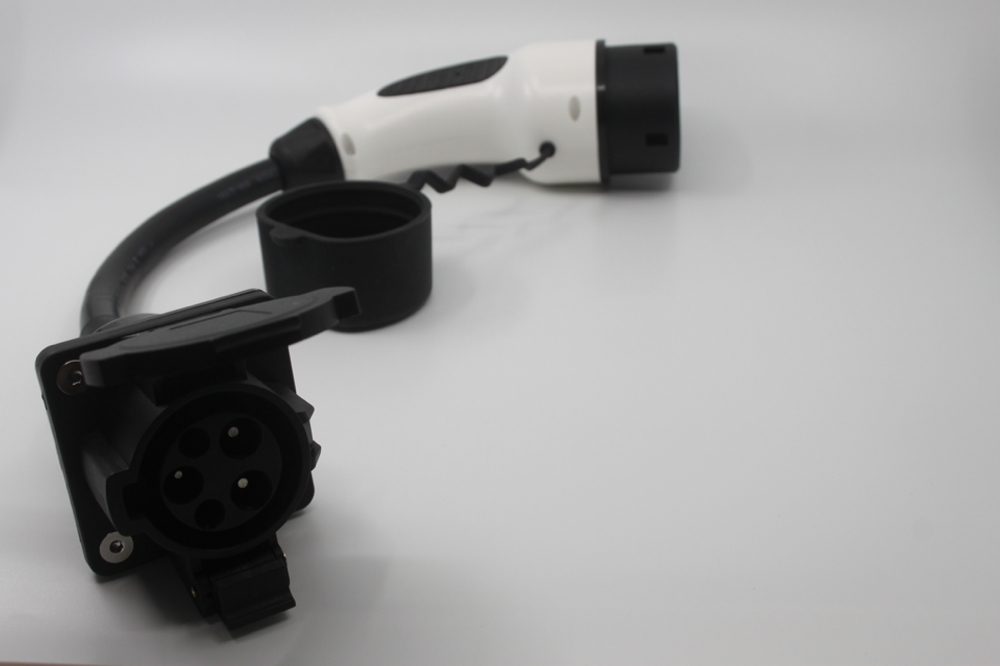

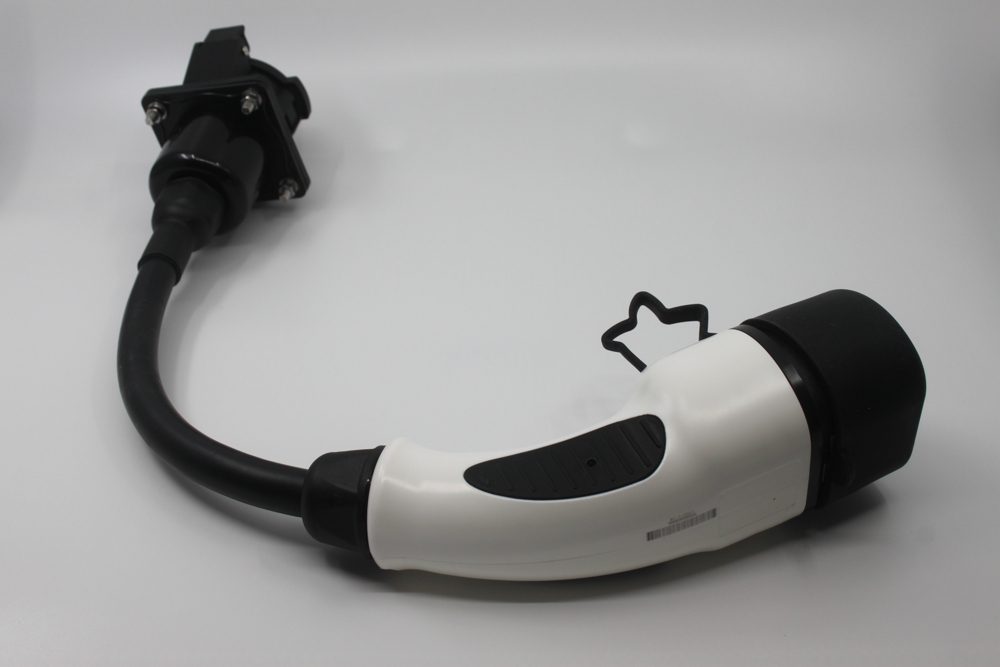

Type 1 to Type 2 Adapter

Model: EV-C4C-1-2

Rated current: 32A

Working voltage: 240V AC

Insulation resistance: > 1000M Ω

Terminal temperature rise: <50K

Withstand voltage: 2000V

Contact impedance: 0.5m Ω Max

Vibration resistance: Meet JDQ 53.3 requirements

Working temperature: -30°C ~+ 50°C

CE, TUV approved

Charging Cable Spec

TUV or UL 3*2.5mm²+2*0.5mm²

Weight: 1KG

Black

Materials

Shell Material: Thermo Plastic ( Insulator inflammability UL94 VO)

Contact Pin: Copper alloy, silver or nickel plating

Sealing gasket: rubber or silicon rubber.

Stock Status

In stock
